HBS ESC 6S 30A
Compact motor control, designed and made in Canada.
A standalone 6S 30A ESC with AM32 support, DShot control and serial telemetry in a 20 × 44 mm footprint.
Note 1: Need an NDAA-compliant build? Contact us for a parts configuration and traceability package tailored to your program.
Note 2: Currently out of stock. Contact HBS Digital for availability, volume pricing or integration support.
Built for modular drone and UAS designs, the HBS ESC controls one motor per board. This lets you place the controller close to the motor and replace a single ESC without changing the flight controller or the rest of the power system. Battery and motor leads solder directly to large power pads, while a compact three-pin JST-SH connector carries ground, DShot and telemetry to the flight controller. The ESC is designed and made in Canada using parts sourced through established, traceable suppliers.
What this enables
- Supports battery systems up to 6S and motor current up to 30 A.
- Compact 20 × 44 mm board fits cleanly into space-constrained airframes.
- One motor per ESC simplifies installation, troubleshooting and replacement.
- DShot control and AM32 serial telemetry use a simple three-wire connection.
Best fit for
- Multirotor, fixed-wing and other UAS platforms using 6S propulsion systems.
- Airframes that benefit from individually replaceable, arm-mounted ESCs.
- Canadian programs looking for domestically made flight electronics.
- Customers who require an NDAA-compliant parts configuration.
Capabilities
Designed and made in Canada
Developed by HBS Digital in Canada, with local control over the board design, assembly and product configuration.

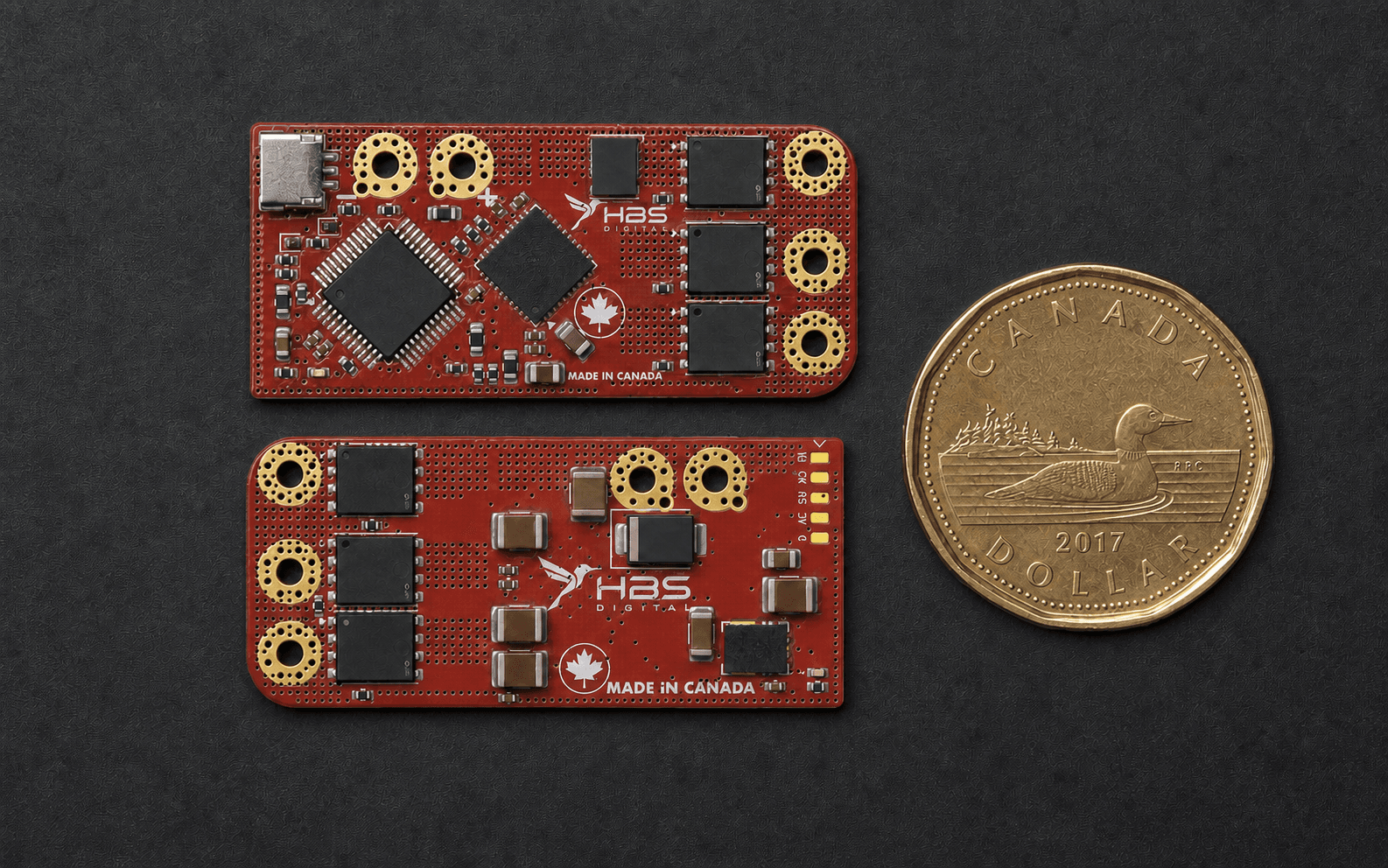

Compact 20 × 44 mm footprint
The narrow board is easy to position near a motor or integrate into a tight electronics bay.
AM32 support
The STM32G071 controller is designed for AM32 firmware, providing a familiar platform for configuration and tuning.
DShot and telemetry
A three-pin JST-SH connection carries ground, DShot commands and serial telemetry between the ESC and flight controller.
Direct-solder power connections
Large battery and motor pads provide a compact, connector-free power path for permanent installations.
NDAA-compliant option
An NDAA-compliant parts configuration and supporting traceability package are available upon customer request.
Specifications
Everything you need to plan your integration.
Electrical, mechanical and interface details for the HBS ESC 6S 30A.
- Battery input
- Up to 6S
- Maximum current
- 30 A
- Board size
- 20 × 44 mm
- Architecture
- Standalone, single motor channel
- Controller
- STM32G071CBT6 with AM32 support
- Gate driver
- Texas Instruments DRV8323H
- Power stage
- Six BSC016N06NS MOSFETs
- Control input
- DShot through a 3-pin JST-SH interface
- Telemetry
- AM32 serial motor-current and battery-voltage telemetry
- Flight-controller link
- GND / DShot / telemetry; signal-only
- BEC
- None — the ESC does not power the flight controller
- Power connections
- Direct-solder battery and three-phase motor pads
- Board construction
- Six-layer PCB, 1.6 mm thick
- Origin
- Designed and made in Canada
- NDAA option
- NDAA-compliant parts configuration available upon customer request
Availability
Currently out of stock
Production inventory is not available yet. Contact HBS Digital for availability, program quantities, or an NDAA-compliant parts configuration.
Contact us about this ESC
