uConsole Ham Hat
Turn your uConsole into a more capable portable ham radio platform.
Built for the uConsole and usable with other USB hosts, Ham Hat combines digital modes support, 2 m transmit and receive capability, and wired networking through a single compact add-on.
1 / 3
Note 1: I expect to begin accepting pre-orders for the first public release around mid-May.
Note 2: This is an experimental device aimed at technically comfortable radio operators and DIY-minded builders.
Note 3: Parts are sourced from established suppliers such as DigiKey with an emphasis on traceability, quality control, and long-term reliability rather than lowest-cost assembly.

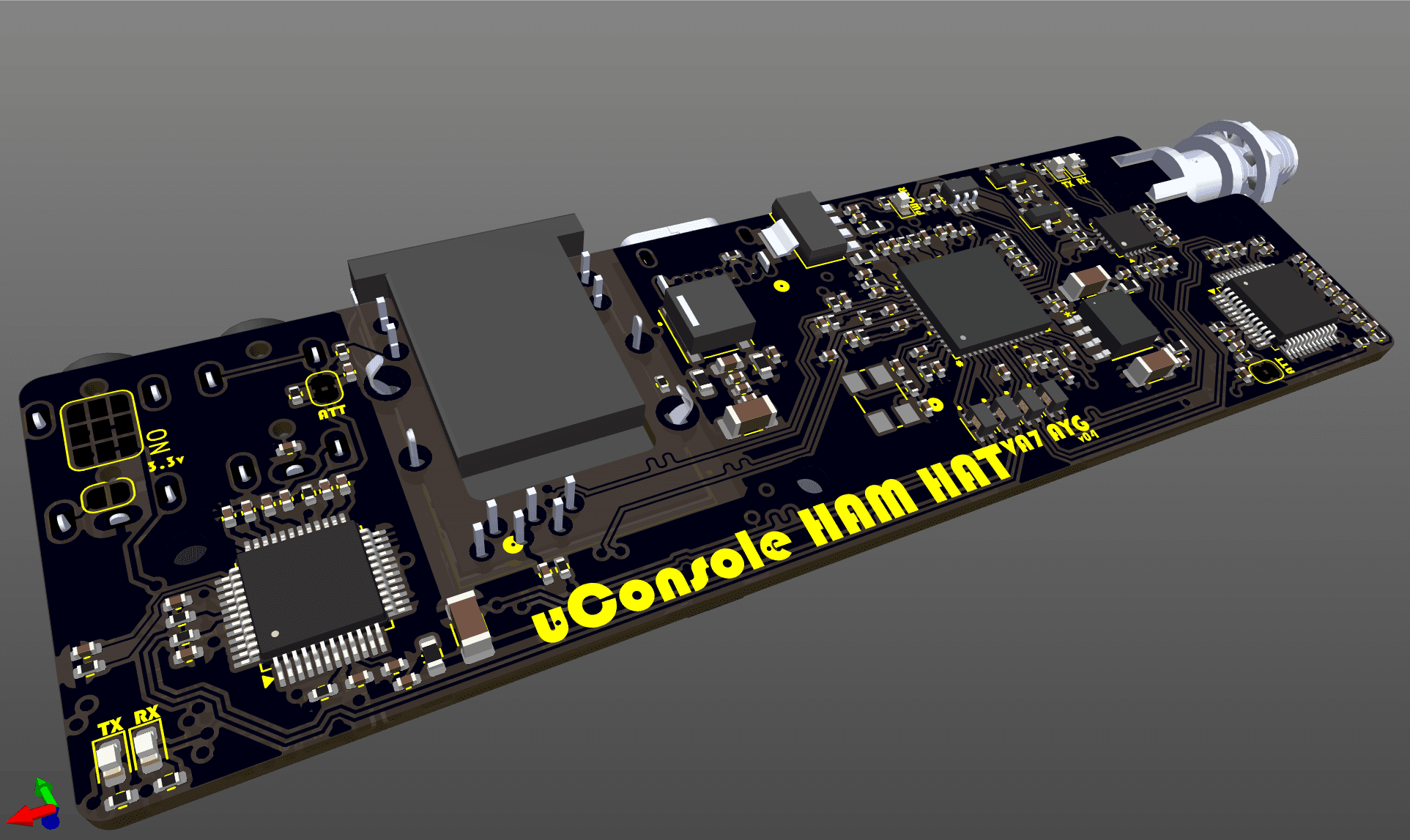

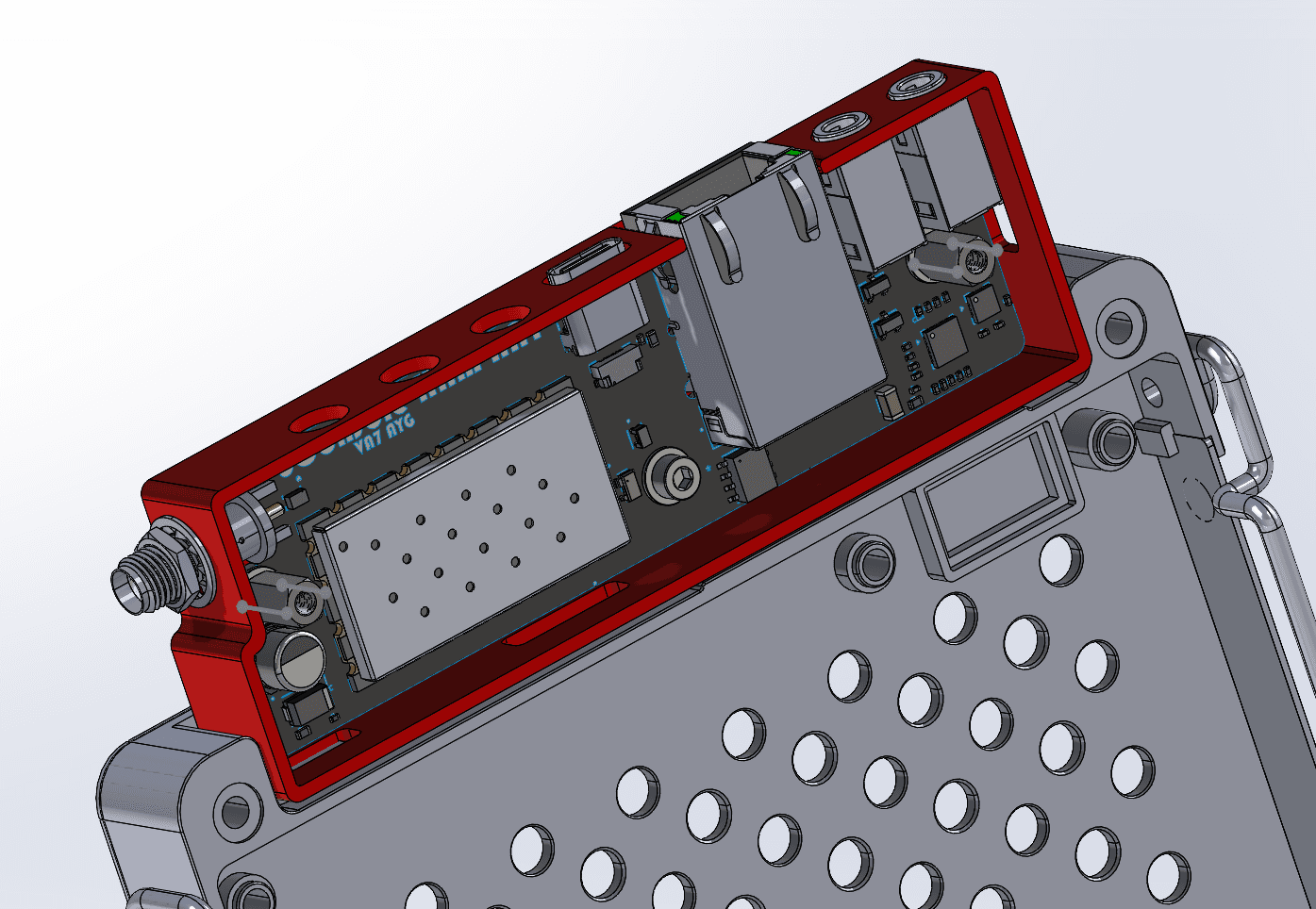

uConsole Ham Hat is an integrated add-on for operators who want more of their portable station in one place. It combines a DigiRig-compatible digital modes interface, 10/100 Ethernet, and a 1W 2-meter transceiver in a single board, while also supporting companion software for configuration and APRS workflows.
What this enables
- Flexible USB connection through either the uConsole internal pads or an external USB cable.
- 10/100 Ethernet through an onboard RJ45 port.
- DigiRig-compatible digital modes interface that works with standard cabling.
- 1-Watt 2-meter transceiver with companion control software.
Best fit for
- uConsole owners who want a more complete APRS and digital radio workflow in one package.
- POTA or SOTA radio operators looking for a portable or field-ready device.
- Experimenters who want a cleaner integrated setup than generic audio/PTT-only tooling.
Capabilities
Integrated radio control
The companion software supports serial discovery, connect and disconnect flows, version reads, radio programming, filter and tail settings, and operational feedback for SA818-based setups.
APRS workflows with real operating depth
The companion software supports APRS direct messaging, position and intro packets, ACK and retry behavior, RX monitoring, station tracking, groups, contacts, thread-based history, and offline map workflows.
Flexible field setup support
The ecosystem already supports both direct SA818 workflows and DigiRig-style audio/PTT operation, with an expanding path toward shared tooling across other hardware such as PAKT.
Regulatory notice: This product is intended for licensed amateur radio operators. Transmitting on amateur radio frequencies requires a valid amateur radio licence in your jurisdiction.
